Last Updated January 21st, 2017. This article is really popular, I’ll do my best to keep it up to date! I’ve added notes about enabling TRIM support.

Aligning Partitions Under FreeBSD for Optimum Performance with RAID Arrays, SSDs and 4k Disk Drives

Note: These instructions have been verified to work for FreeBSD 9.1, FreeBSD 9.2, FreeBSD 10.0, FreeBSD 10.1, FreeBSD 11.0 .

By default the FreeBSD installer does not create properly aligned partitions for use with a RAID array, SSD, or 4k drives (sometimes called AdvancedFormat).

This presents a major performance issue when using a RAID array or 4k drive (including SSDs) because a single OS-level I/O operation ends up triggering two or more disk and controller I/O operations when they are unnecessary:

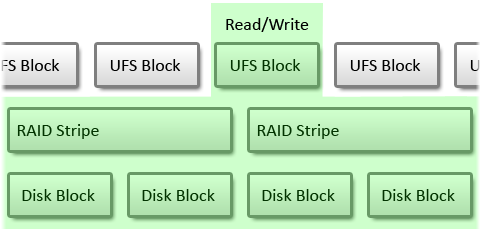

Unaligned Partitions

As you can see that the middle UFS block is sitting on the border between two RAID blocks and subsequently triggers four I/O operations to get that one OS block.  For non-RAID setups the situation is similar (just remove the RAID Stripe layer).

With partitions aligned to the boundaries of all subsequent device’s blocks the ‘wasted’ I/O is cut in half.  For a RAID controller this means the stripe size and the underlying hard disks’ block sizes.  For SSDs and AdvancedFormat disks this is just the block size (typically 4k):

Unaligned Partitions

With aligned partitions you can see that a single operation now only triggers 1 RAID I/O operation.

The key is to have all the boundaries lined up: File system (OS), RAID array stripe size (if you are using RAID), and finally the disk(s)’ physical block size.

Here is an example of the performance difference under FreeBSD 9.0 with an LSI 3ware 9750-8i with six SATA 6 Gb/s disks running RAID 10:

Partitioning Write Speed Read Speed Random Seeks
Unaligned 250 MiB/sec 316 MiB/sec 266 per sec
Aligned 366 MiB/sec 388 MiB/sec 334 per sec

In this case we saw a 46% increase in writes, 22% increase in reads and 25% increase in seeks per second.

The Good News

Fortunately its fairly straight forward to properly align your partitions during the install process.

In this walk through we’ll use the FreeBSD installer to manually setup a GPT partition table, create the aligned partitions we need, and then newfs our root file system.

Step 1: Boot The FreeBSD Installer

Start the FreeBSD install process as normal.  When you are asked about how you want to partition the disk pick “Shell”:

FreeBSD 9 installer

Step 2: Setup The Partitions

Once inside the shell use these commands to setup GPT and slice up both disks.

This example assumes you are doing this on disk ‘da0’  (SCSI) and uses 1 MiB alignment.  The key here is the -a option for the UFS partition which specifies the alignment (for both the beginning and end of the partition).  We recommend 1 MiB alignment as it is going to work for anything from 4k drives to any kind of RAID stripe size up to 1 MiB. This will also leave a small amount of space at the end of the disk as well — useful if you get a replacement disk from a different vendor which is slightly smaller.

# ---- Setup the GPT and partitions
gpart create -s gpt da0
gpart add -s 128k -t freebsd-boot -l boot0 da0
gpart add -a 1m -s 8G -t freebsd-swap -l swap0 da0
gpart add -a 1m -t freebsd-ufs -l root0 da0

# -- Install boot code
gpart bootcode -b /boot/pmbr -p /boot/gptboot -i 1 da0

You’ll notice I’m not aligning the boot or swap partitions as they don’t have “real” filesystems with blocks.  If you are using separate /var /usr, /tmp etc partitions you’ll want to use the -a option for those, too.

Step 3: Create And Mount The Root (/) Filesystem

Here we actually format the root filesystem, enabling soft updates (-U).  I also use “-L root” to set the filesystem label but this isn’t needed.  Then we mount the new filesystem in /mnt (which is where the installer expects the target filesystem to be).

If you are using SSDs add the -t option to the newfs call below so that TRIM support is enabled from the start.

# -- For HDDs:
newfs -U -L root /dev/da0p3
# -- For SSDs:
newfs -t -U -L root /dev/da0p3

mount /dev/da0p3 /mnt

We now need to create the fstab file which will be put into place by the installer:

vi /tmp/bsdinstall_etc/fstab
# Device        Mountpoint      FStype  Options Dump    Pass#
/dev/da0p2      none            swap    sw      0       0
/dev/da0p3      /               ufs     rw      1       1

Exit out of the partitioning shell to resume the setup:


Step 4: Resume The Setup

That’s it! Continue through the rest of the install as you normally would do.

Final Thoughts

If you’re installing FreeBSD on a RAID array, SSD or 4k drive I highly recommend running through a few installs and using a tool like bonnie (in ports) to test the I/O performance and verify that things do improve after alignment and that you’re seeing the speeds you expect.  Its easy to do this before you start customizing the machine and installing things vs. after.

Call 1-828-376-0458 to Work With Professionals Who Truly Understand FreeBSD

A-Team Systems is a proud supporter of the FreeBSD Foundation and many of our administrators are direct project contributors.


4 Responses to “HOW TO: FreeBSD Partition Alignment for RAID, SSDs & 4k Disk Drives”

  1. Martijn

    Note that you should definitely align the swap partition on a 4k boundary, since swap is moved around in chunks of the system page size which is 4096 on most systems (see pagesize(1)).

    Also, to enable trim for your filesystems you can supply the -t option to newfs.

  2. Yo Ma Ma

    swap filesystems don’t understand about SSD trim, so another way to do it is to use a file in a trim-enabled file system, which has been preloaded with nulls to the required size via the dd command

    current versions of freebsd allow that to be specified in the fstab:
    md none swap sw,file=/swapfile 0 0
